110 meters/min V fold folding machine with Frequnecy Converter Speed Adjust and Servo Motor Control
|
Ürün ayrıntıları:
|
Detaylı ürün tanımı
| Hız ayarı: | Frekans Dönüştürücü | Katlama Makinesi Hızı: | 110 metre/dk |
|---|---|---|---|
| Çalışma arayüzü: | Dokunmatik Ekran | Kontrol: | Servo Motor Kontrolü |
| Gerilim: | 380V,50HZ | Üretim kapasitesi: | Jumbo Rulo Genişliğine Bağlıdır |

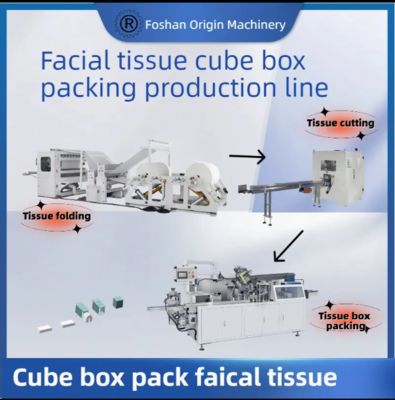

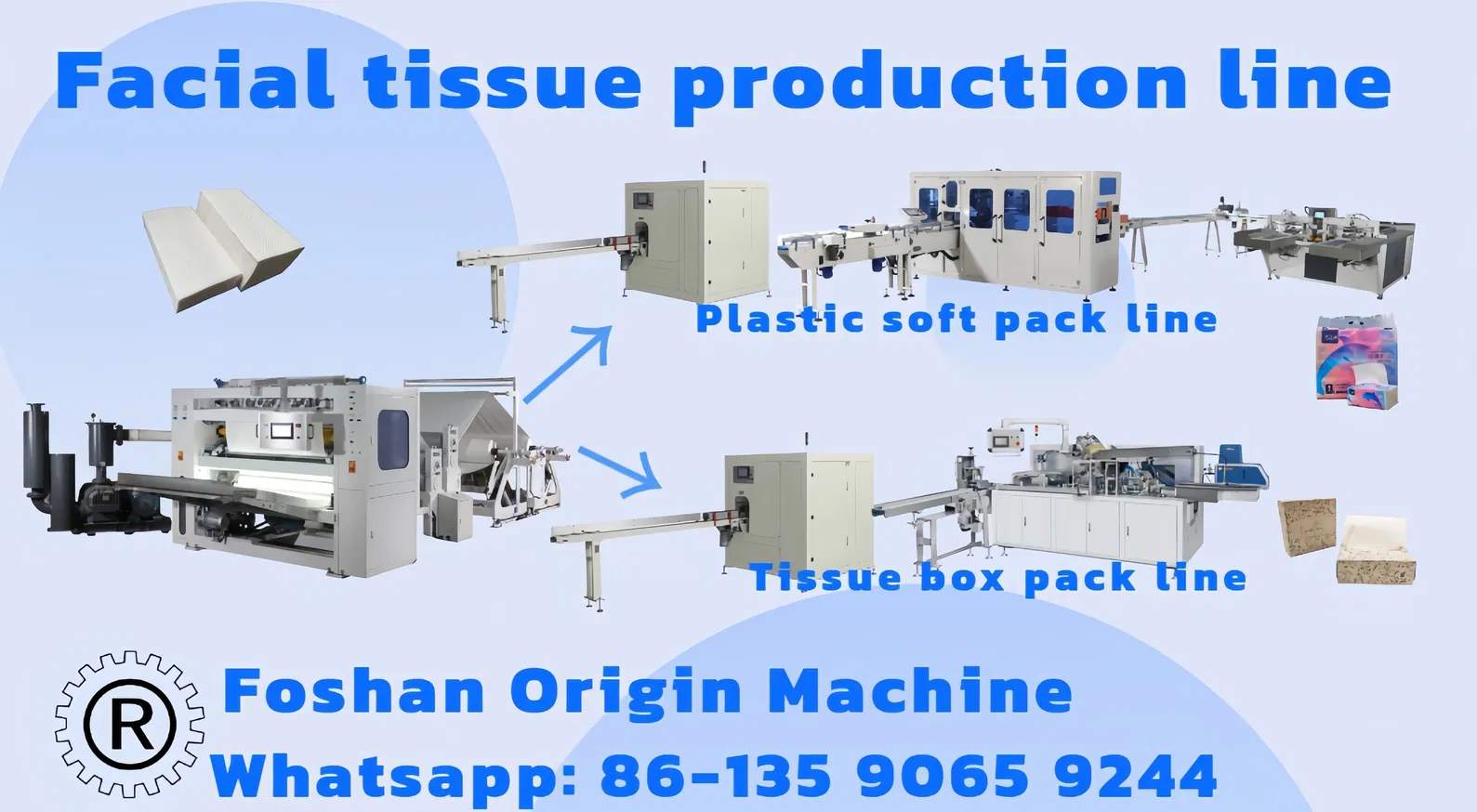

This display solution is composed of following machines:
- V fold facial tissue folding machine (manual transfer)
- Log saw cutting machine (Single lane) *2sets
- Fully automatic facial tissue nylon packing machine
- Semi automatic facial tissue bundle pack machine
- Automatic tissue box packing machine
- Conveyors
| Model | CJ-6L | CJ-7L | CJ-10L | CJ-14L |
| (Jumbo roll Width): | 1260mm | 1500mm | 2000mm | 2800mm |
| (Vacuum pump): | 18.5KW | 18.5KW | 22KW | 50KW |
| (Output direction cutting length): | 175/180/190/200,(175/180/190/200, others size should be ordered) | |||
| (Design speed): | (0~130m/min/lane) | |||
| (Operation speed): | 10m/min/lane) | |||
| (Max. diameter of Jumbo roll): | 1500mm,(1500mm,others size should be ordered) | |||
| (Unwinder): | (2~6sets) | |||
| (Options): | ||||
| (Embossing unit): | (Steel to Steel/Felt/Paper/Rubber Roller Embossing) | |||
| (Lamination): | (Point to point/nested/others) | |||
| (Edge-embossing): | Bearing wheels or Knurling sleeves type | |||

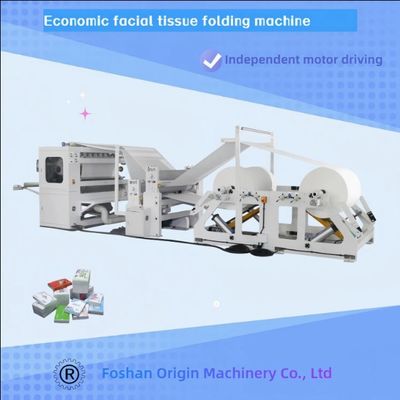

V Fold facial tissue folding machine:
1. Adopts PLC programme control system,touch screen parameters setting system and separating motor driving system to control the products' quality.2. New design for folding blades: Upper blade is spiral blade, it keeps the cutting nicely and avoiding blade damage when in case of tissue jams.
Facial tissue log saw cutting machine
1. Servo control paper cutting length precisely, tolerance ±1mm
2. Cutting blade rotating , servo system controls logs moving forward
2. Cutting blade rotating , servo system controls logs moving forward

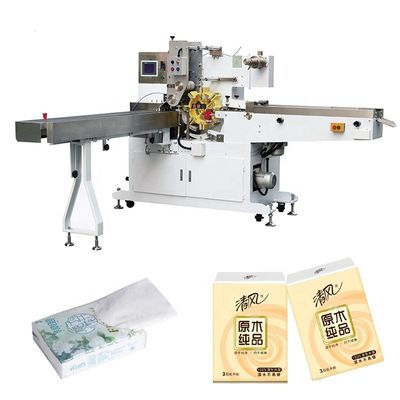

Fully automatic facial tissue soft pack machine
1. Full servo driving
2. Running speed up to 220bags/min
3. Rotatry wrapping mould
2. Running speed up to 220bags/min
3. Rotatry wrapping mould

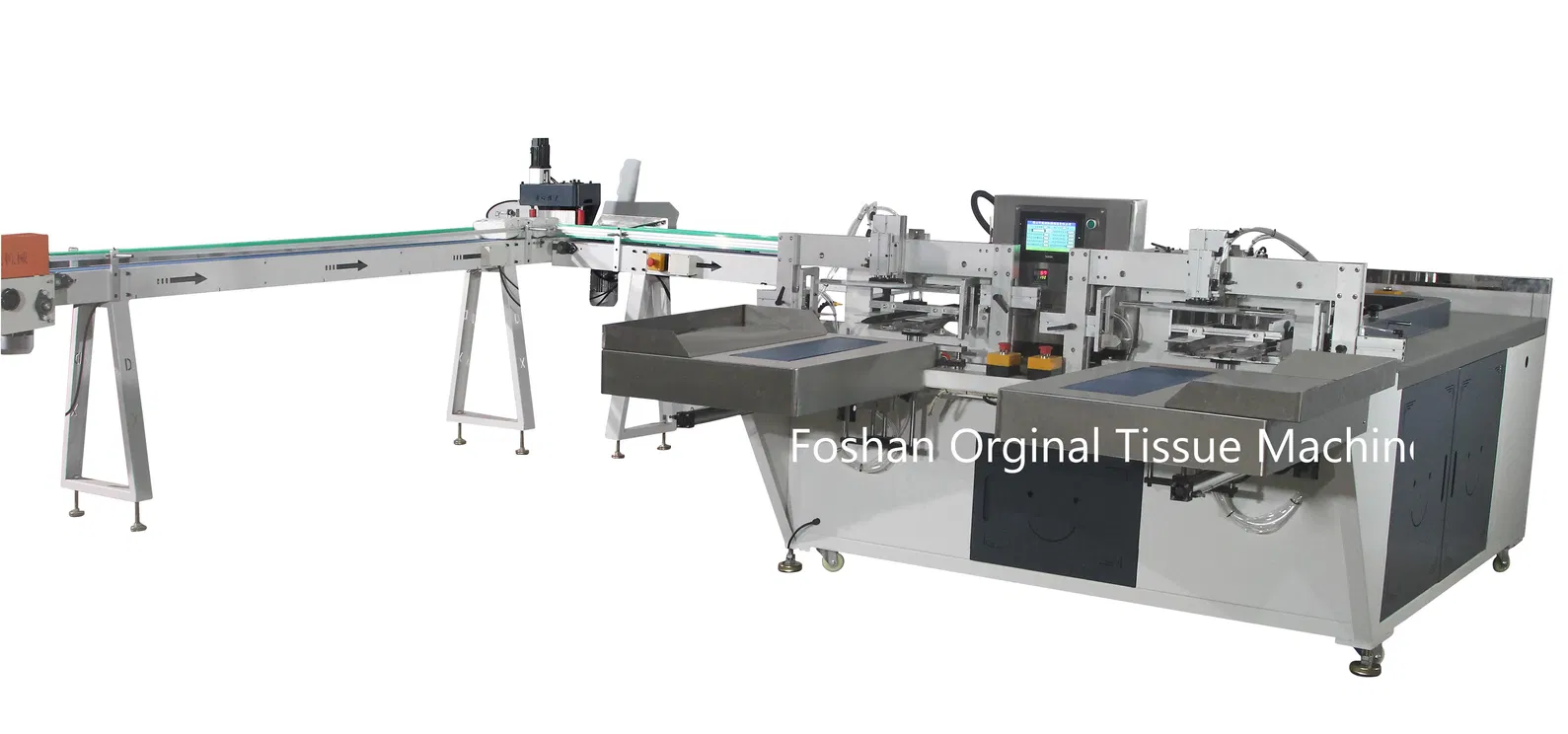

Semi automatic facial tissue bundle pack machine
1. Two operation decks
2. Servo control conveyors and tissue arranging device
3. 4-12bags/package adjustable
2. Servo control conveyors and tissue arranging device
3. 4-12bags/package adjustable
Full automatic facial tissue box pack machine
1. 120boxes/min
2. Servo control
3. Nordson glue machine
2. Servo control
3. Nordson glue machine
