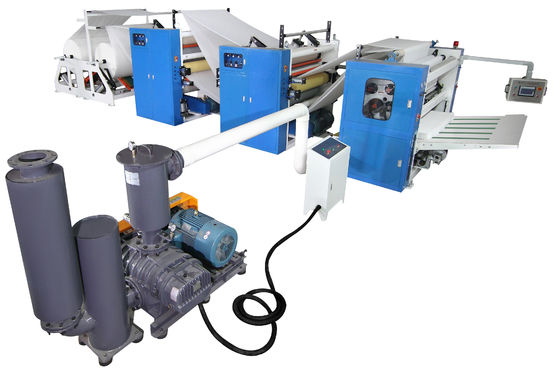

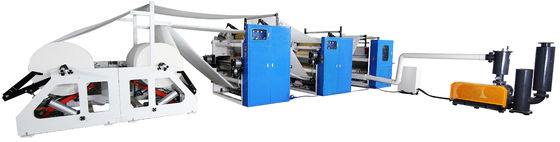

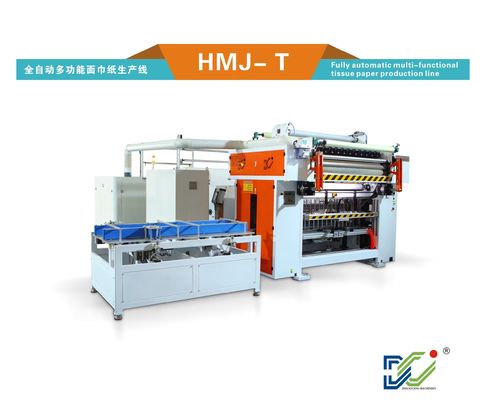

Glue Lamination Unit & Steel To Steel Embossing Unit V Fold Facial Tissue Folding Machine With Auto Transfer
|
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Katlanır tip: | Virtiye | Katlanır boyut: | 200mm (müşteri tarafından onaylanmıştır) |
|---|---|---|---|
| Jumbo Roll GSM: | Yüz Mendili: 15/17gsm*2 katlı | katlama yöntemi: | Vakum katlama |
| Vakum pompası: | Roots Vakum Pompası | Sürüş sistemi: | Bireysel motorlar ve frekans dönüştürücüler |
| Kabartma türü: | Çelikten çelik veya çelikten kauçuktan | Garanti: | Bir yıl |
| Çalışma hızı: | 110 metre/dakika-130 metre/dakika | Otomatik Aktarım: | İsteğe bağlı |
| Tutkal laminasyon: | İsteğe bağlı | ||
| Vurgulamak: | glue lamination unit facial tissue machine,steel to steel embossing unit machine,auto transfer v fold tissue machine |
||
Product Description
Foshan Origin Machinery Co., Ltd.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
Machine Features:
1. Equipped with glue lamination system, ideal for producing high-end value-added tissues such as V fold kitchen towels and hand towels. Produces fluffy, highly absorbent paper towels.
2. Utilizes high-precision engraved embossing rollers to create vivid, three-dimensional patterns. The roller surface is smooth and burr-free, ensuring well-defined and durable pattern formation.
3. Features an automatic circulating glue application system with adjustable glue dosage control, precise and even glue application.
| Machine Model | HMJ-XL |
| Parent Roll Width | 1500/2000/2800 mm (to be confirmed by customer) |
| Parent Roll diameter | ≤1500mm |
| Unwinder driving | Independent frequency driving, consistent unwinding web tension. |
| Folding function | 4-roll folding |
| slitting Sheet size | 175 / 180/190/200/210mm (to be confirmed by customer) |
| Sheet slitting structure | Sprial slitting blades |
| Counting | pneumatic log shfiting / ink mark |
| Embossing (options) independent drive |
Multiple specifications 4-sides position embossing Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
| Designed speed | 130m/min |
| Prodution speed | 100m/min |
| Driving system | Independent variable frequency drives for each functional unit |

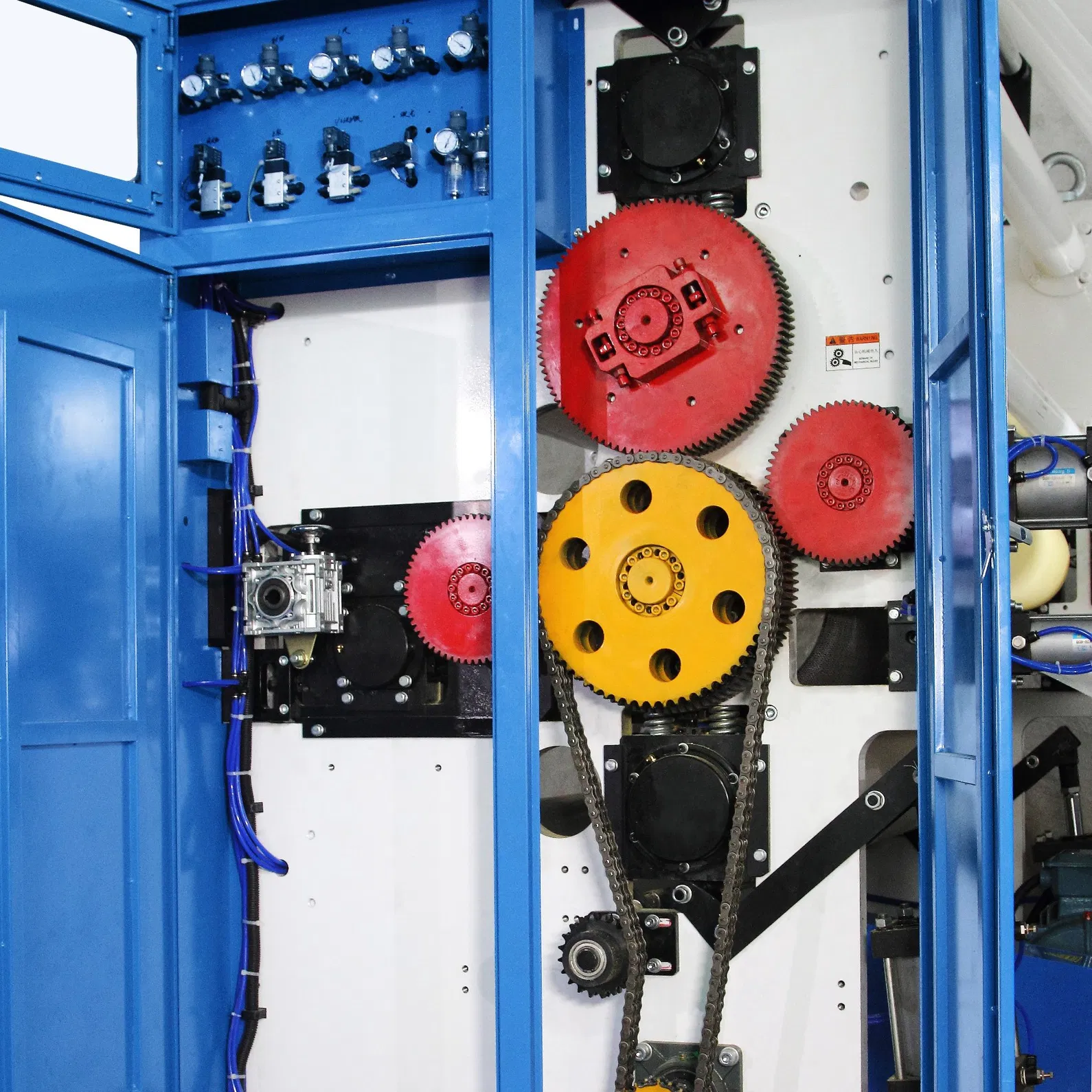

- Individual driving system

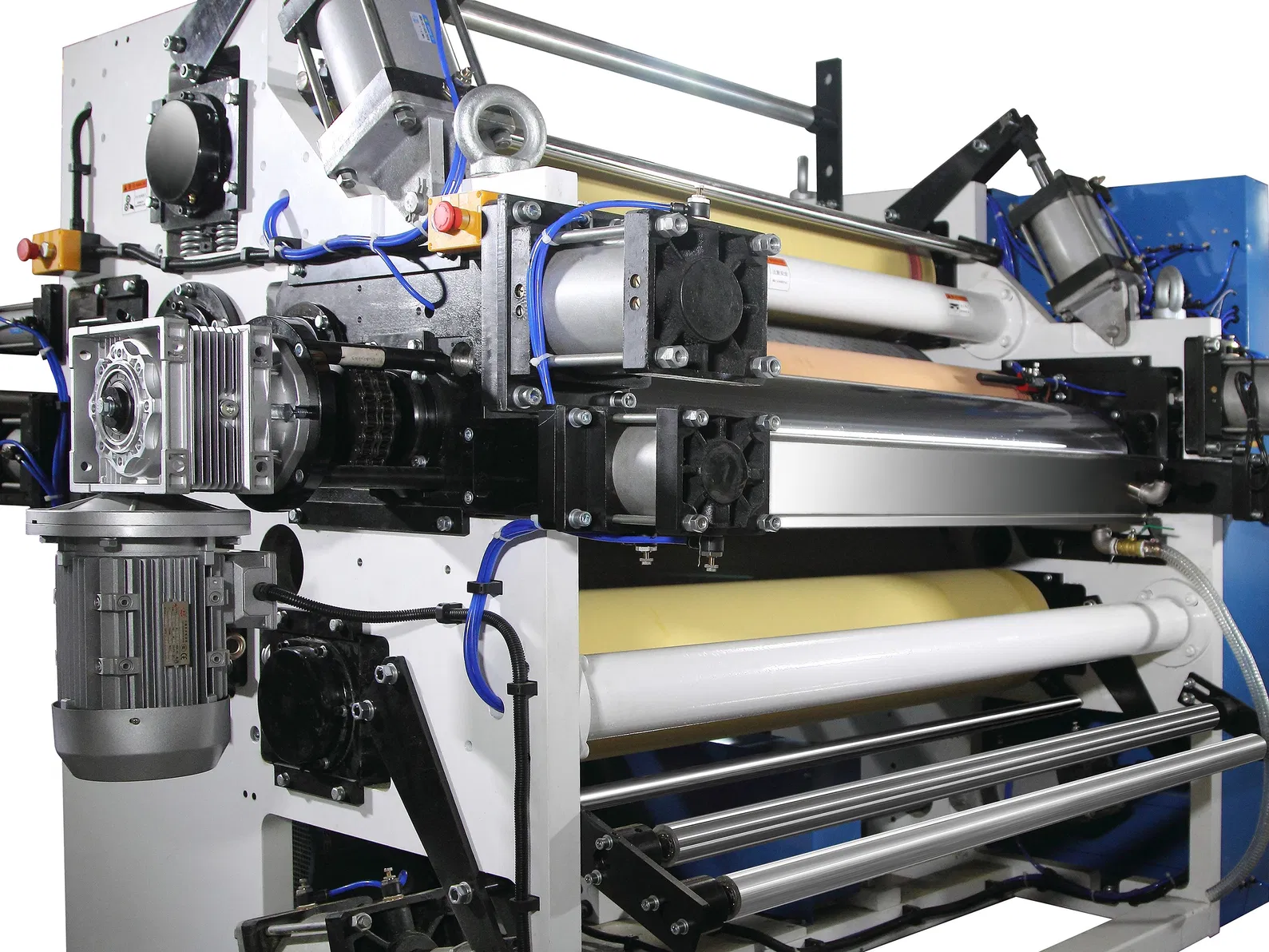

Lamiantion system

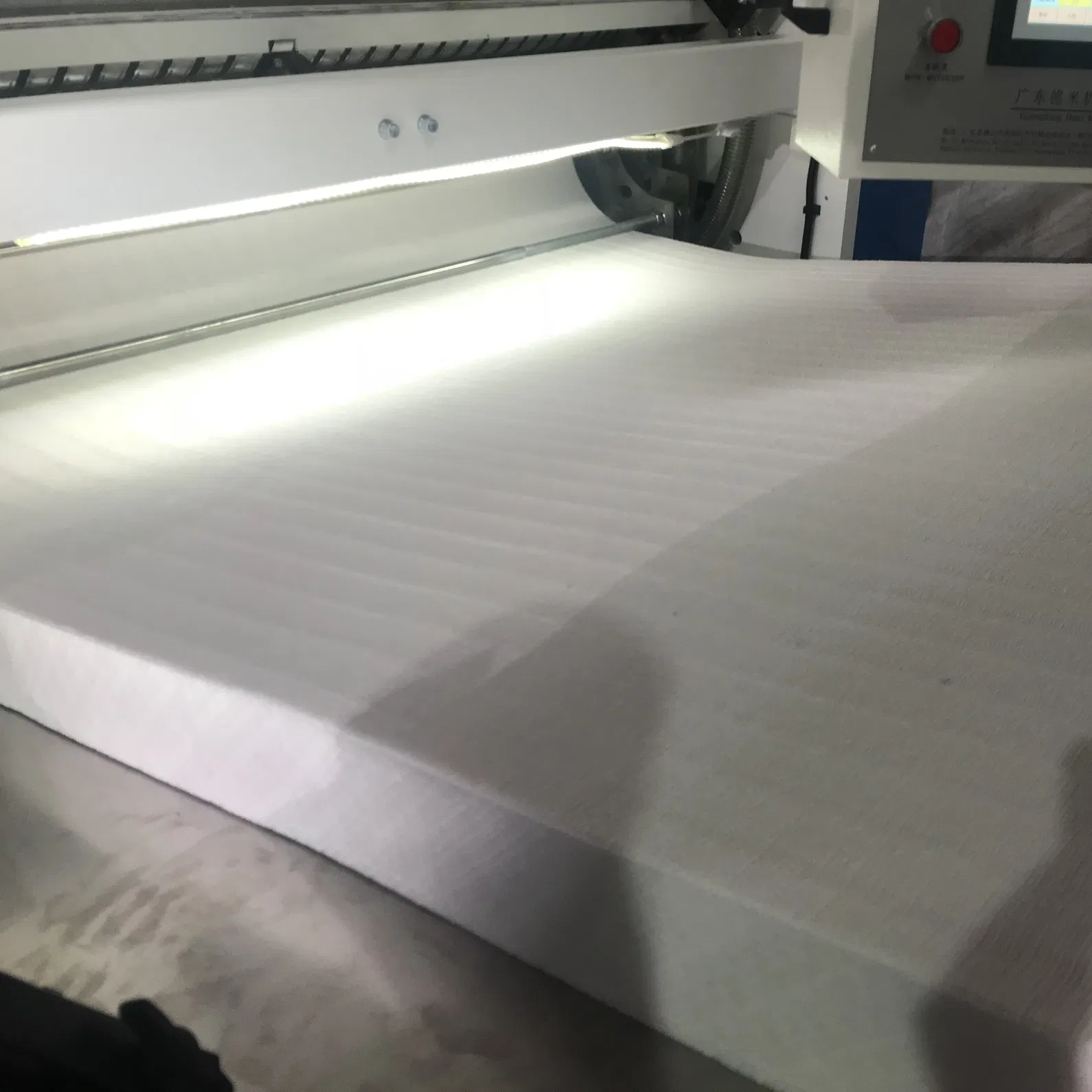

3. Tissue output
